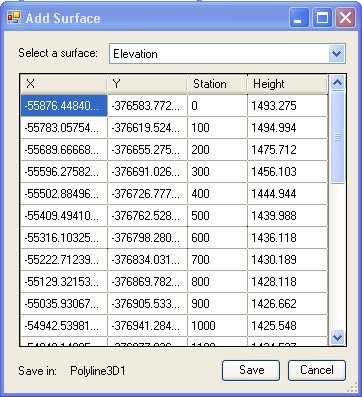

- Save data in the currently edited layer. The layer can be PointZ or PolylineZ feature layer
 |
The data for a single
surface can be exported only
The user needs to select a surface for which the data will be exported. If the currently edited layer is of PointZ type and has a field called ET_Station, the stations of the data points along the profile will be stored in this field. |

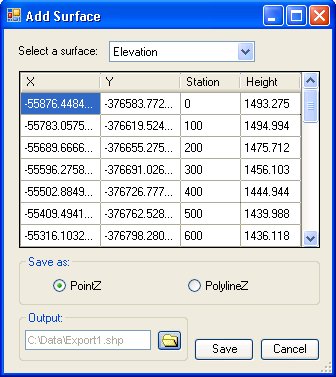

- Export the data of the current profile to a new feature class.
 |
The data can be exported to
a new PointZ or PolylineZ feature class.
The data for a single surface can be exported only The user needs to select a surface for which the data will be exported. If the output is set to PointZ type a new field called ET_Station will be created, the stations of the data points along the profile will be stored in this field.
|

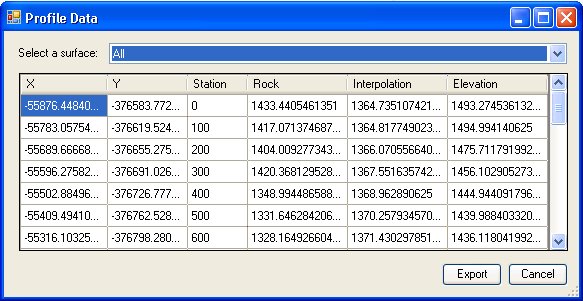

- Export profile data as a text file
 |
| The user needs to select
a surface for which the data will be exported. If the user selects
"All", then the data for all surfaces in the Profile Window will be
exported. Since profiles of different types may have different data
points, the data points are merged and sorted, and Z values for each
surface calculated for the resultant list of data points. The data will be exported in a comma delimited text file and will have the following structure X,Y,Station,Surface1,Surface2,Surface3....... where Surface1 will have the Z values for the point extracted from Surface1 |

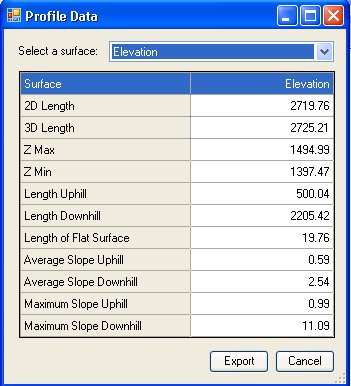

- Export Profile Statistics
 |
The statistics of the profile for the specified surface will be saved to a text file. |
- Save As Image - an image of the current profile will be saved to a disk. Supported export formats are Bitmap(.bmp), Gif(.gif), Jpeg(.jpg), Png(.png) and Tiff(.tif).
