Weighted Voronoi Diagram
Open Table of Contents ToolBox Implementation
Derives the catchment areas of the input features (Sources) using their spatial location and the weight of each source. The smaller the weight value of a source is, the greater the influence of the source is.

Inputs:

  • A point feature class (Sources).
  • The cell size of the output raster.
  • Source ID field. The values from this field will be allocated to the cells of the output raster.
  • Weight field. The values of this field will be used to define the weight of the sources. Only integer fields can be used for weight of the sources
  • Cutoff distance - a cell farther than this distance of a source cannot be allocated to this source - the maximum radius of influence of a source.

Algorithm:

All sources start growing at the same time. A source with weight = 1 increases its area every cycle, a source with weight = 2 every second cycle, a source with weight = 10 every tenth cycle and so on. The process finishes when all cells of the output raster are occupied. If cutoff distance is specified a source will stop increasing its area when it reaches the maximum radius of influence.

Outputs:

  • An integer raster. Each cell will have as a value the ID of the closest input point (Source). The extent of the output is equal to the extent of the input feature class.

Examples:


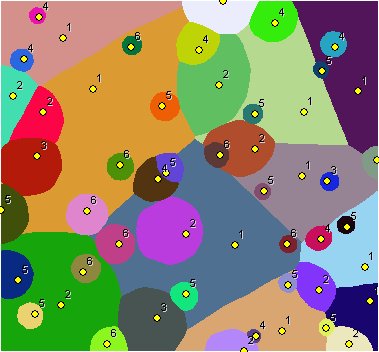

Points labeled with their weights.

No cutoff distance specified

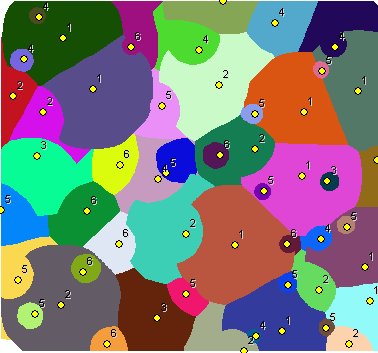

Points labeled with their weights.

Cutoff distance specified



Notes:

  • Initially the name of the output raster defines the raster format
    • no extension specified - ESRI binary GRID
    • .img extension (for example raster1.img) - ERDAS IMAGINE image.
    • .tif extension (for example raster1.tif - Tagged Image File Format (TIFF) image.
  • The initial output raster format can be changed by selecting the desired output in the dialog.
  • Currently only file based rasters are supported. Rasters cannot be stored in a GeoDatabase. After you get the desired result, you can export the raster to a GeoDatabase using the standard ArcGIS tools.
  • The input feature class must be in a projected coordinate system.
  • The result raster can be easily converted to a polygon feature class using the standard ArcGIS Raster To Polygon tool
  • The attributes can be transferred to the polygons by joining the Raster Attribute Table to the polygons using GRID_CODE field of the feature class and the Value field of the raster attribute table.

ToolBox implementation

Command line syntax

ETS_GPWeightedVoronoi <Input Points> <Out Raster> < ID Field> <Weight Field> < Cell Size> {Cut Off Cost}

Parameters

Expression Explanation
<Input Points> A Point layer feature class
<Out Raster> A String - the full name of the output raster (A raster with the same full name should not exist). The output raster type depends on the extension of the output file(see Notes above)
 < ID Field> A String representing the name of the field in the input point feature class to be used as point ID.
<Weight Field> A String representing the name of the field in the input point feature class that are going to be used as weights.
<Cell Size> A Double representing the cell size of the output raster.
{Cut Off Cost} A Double representing the cut off cost - the value of the cells with larger than this cost (distance x weight) to reach will be set to NODATA

Scripting syntax

ETS_GPWeightedVoronoi (Input Points, Out Raster, ID Field, Weight Field, Cell Size, Cut Off Cost)

See the explanations above:
<> - required parameter
{} - optional parameter
